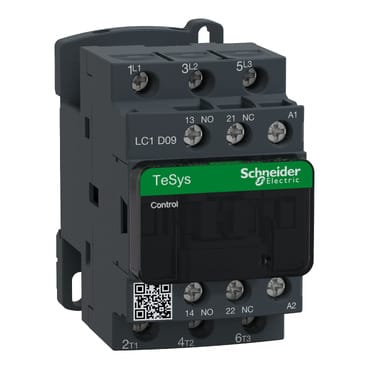

Schneider Electric LC1D09F7 | Authorized Source

LC1D09F7

Manufacturer:
Schneider Electric
Manufacturer Part Number:
LC1D09F7
Description:
Contactor
Detailed Description:
TeSys 3P CTR 9A AC3 4KW1NO1NC110VAC COIL
Datasheet:Datasheet

Why you should choose ARC

Leading Authorized Distributor of Electronic Components since 1968

ECIA Member
Dun & Bradstreet Certified
ISO 9001-2015 Certified
Great Place to Work Certificate

Product Technical Specifications

#	Attribute	Value
1.	Rated Operational Voltage(Ue)	<=300VDC,<=690VAC 25..400hz
2.	Range	TeSys
3.	Application	Motor Control and Resistive Load
4.	Poles	3P
5.	Utilisation Category	AC-3,AC-3e,AC-4,AC-1
6.	Control Circuit Voltage	110VAC 50/60hz
7.	Rated Operational Current(Ie)	9 A (at <60 �C) at <= 440 V AC AC-3 for power circuit
8.	brand	Schneider Electric
